Rane TERMINAL 1010x Audio DSP Multiprocessor



Audio DSP Multiprocessor

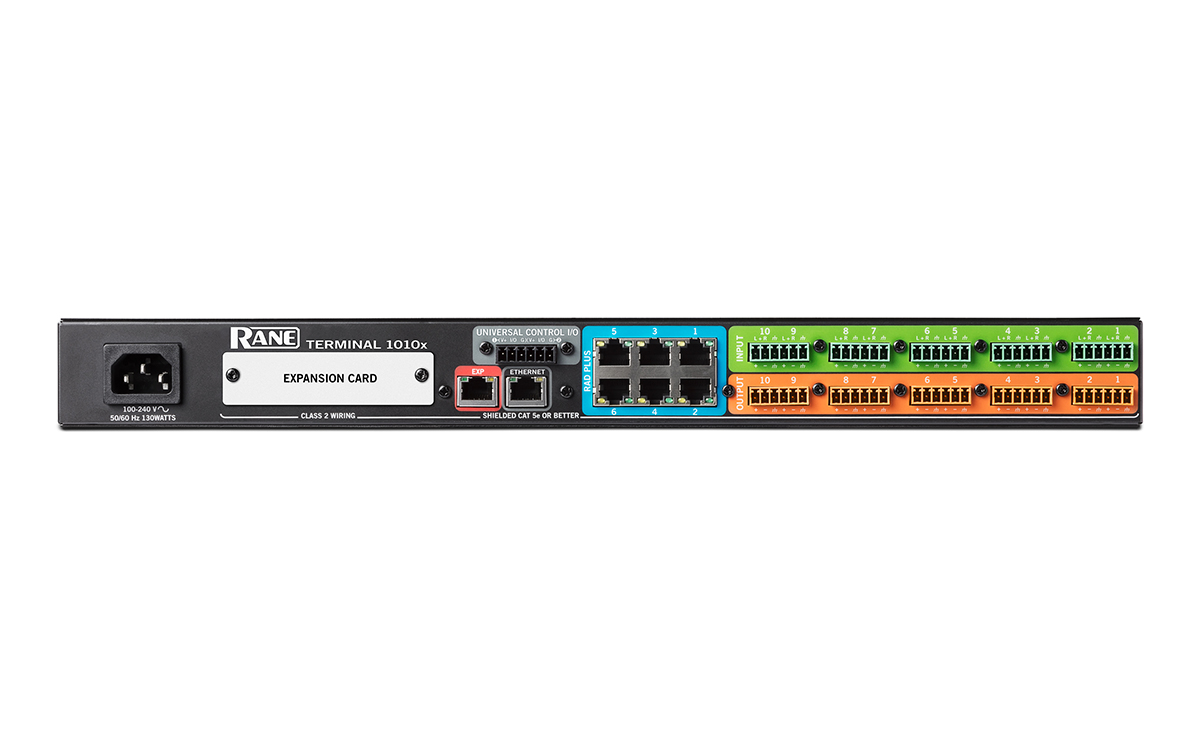

The Terminal 1010x takes the DSP Experience to the next level with an intuitive front-panel that enables users to control 10 analog balanced inputs for Mic/Line/+48V and 10 balanced outputs. There are also 6 flexible RAD Plus PoE ports to connect breakout boxes and wall plate remote controls and 4 Universal GPIO logic ports for external devices such as alarm systems, sensors, lights, projectors, etc. There is also a slot for an optional DANTE™ 32x32 card for network connectivity.

Native Analog 10-in/10-out

  • 6 RAD+ Ports support RADs and DRs - adds 12-in/12-out, for a total 22-in/22-out

  • Optional DANTE™ card adds 32-in/32-out on the network

  • Expansion Port for future hardware releases

  • Online Wizard for quick-start using Halogen software

  • Enhanced front panel control and monitoring


For more information or to schedule a demo, call 815-271-3000 or email sales@audiobiz.com
